1550nm 15dbm SOA Полупроводник Оптички засилувач btf
  • 1550nm 15dbm SOA Полупроводник Оптички засилувач btf 1550nm 15dbm SOA Полупроводник Оптички засилувач btf
  • 1550nm 15dbm SOA Полупроводник Оптички засилувач btf 1550nm 15dbm SOA Полупроводник Оптички засилувач btf
  • 1550nm 15dbm SOA Полупроводник Оптички засилувач btf 1550nm 15dbm SOA Полупроводник Оптички засилувач btf
  • 1550nm 15dbm SOA Полупроводник Оптички засилувач btf 1550nm 15dbm SOA Полупроводник Оптички засилувач btf

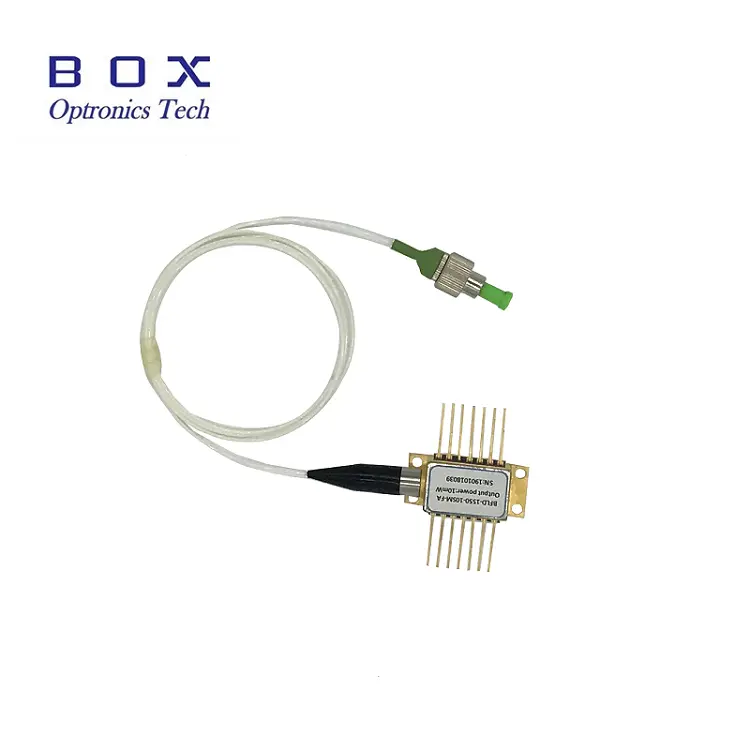

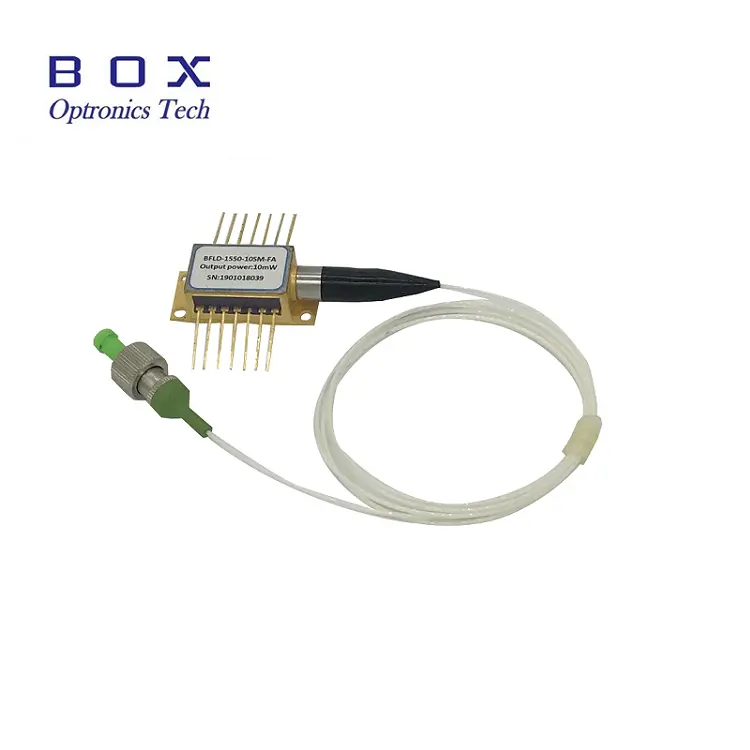

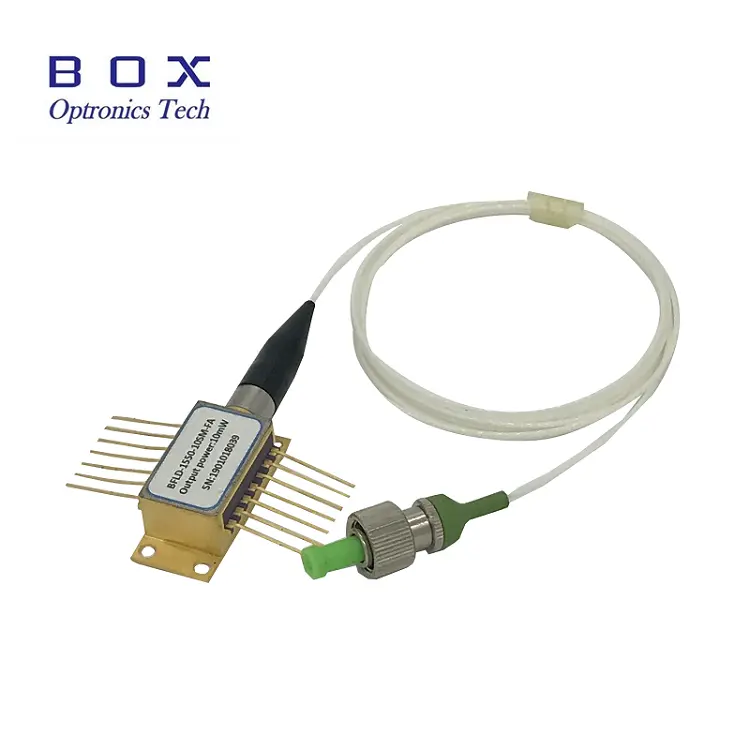

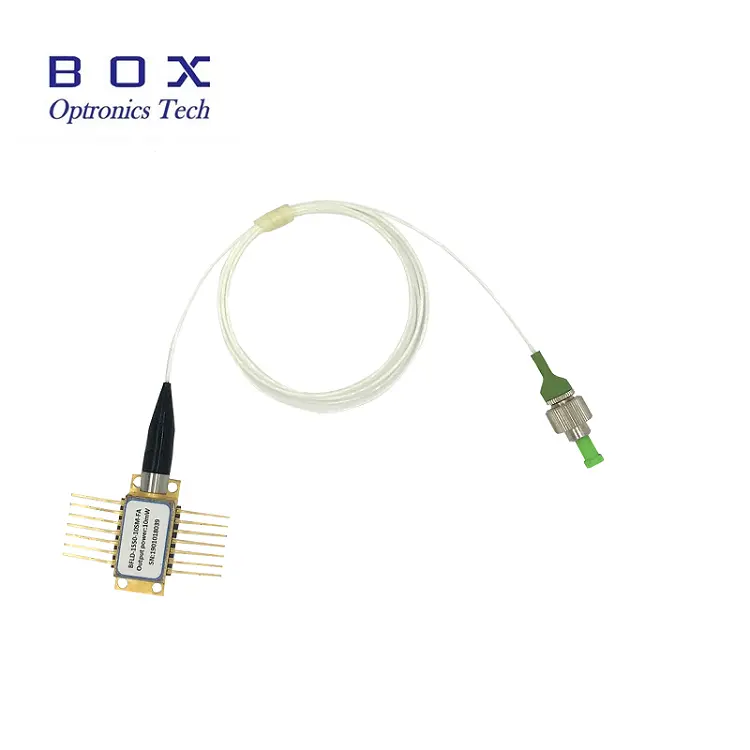

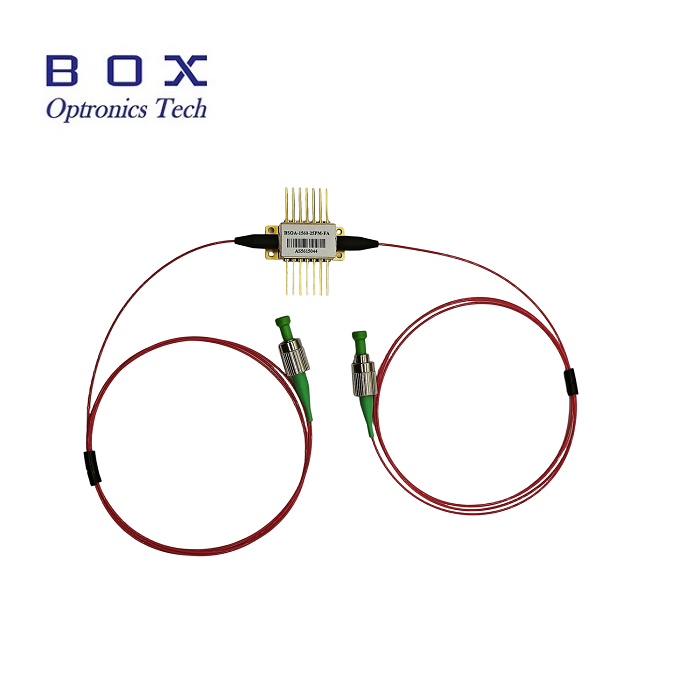

1550nm 15dbm SOA Полупроводник Оптички засилувач btf

Серија на производи за засилувач на полупроводник (SOA), првенствено се користи за засилување на оптички сигнал и може значително да ја зголеми излезната оптичка моќност. Производите имаат голема добивка, мала потрошувачка на енергија и одржување на поларизација, меѓу другите карактеристики и се целосно обработени со домашно контролирана технологија.

Испрати барање

Опис на производот

The Semiconductor Optical Amplifier (SOA) product series, is primarily used for optical signal amplification and can significantly increase the output optical power. The products feature high gain, low power consumption, and polarization maintenance, among other characteristics, and are fully processable with domestically controllable technology.

Features

40G and 100G C-Band blocking shutter or modulation;

14PIN Butterfly package;

Low Noise Figure & Low polarization dependence;

SMF-28e fiber with FC/APC connector.

Reliability: Telcordia GR-468. RoHS

Applications

Loss compensation for fiber optical connection and switch;

WDM fiber optical networks;

MOPA (Master Oscillator Power Amplifier) laser.

Electro-Optical Characteristics(T=25℃)

Parameter Symbol Condition Min. Typ. Max. Unit
Operating wavelength λPEAK 25℃, PIN=0dBm - 1550 - W
ASE Centre wavelength λASE 25℃, IF=250mA - 1515 - nm
-3dB Gain Bandwidth Δλ PIN=0dBm 100 - - nm
Saturation Optical Power PMAX IF=250mA,
PIN=5dBm@1550nm
12 - 15 dBm
Small Signal Gain SSG IF=250mA,
PIN=5dBm@1550nm
- 25 - dB
Forward voltage IF - - 250 400 mA
Power conversion efficiency VF - - 1.3 1.5 V
Noise Figure NF 25℃, IF=250mA,
@1550nm
- 7 9 dB
Polarization Extinction Ratio PER 25℃, IF=250mA - 1.0 2.0 dB
Shutdown extinction ratio1 ER IF=250mA/IF=0mA,
PIN=0dBm
- 50 - dB
Shutdown extinction ratio2 ER IF=250mA/IF=5mA,
PIN=0dBm
- 70 - dB
TEC Current ITEC - - - 1.8 A
TEC Voltage VTEC - - - 3.4 V
Thermistor resistance Rtherm T=25℃ 9.5 10 10.5
Thermistor current Itherm - - - 5 mA
Total power P - - - 4 W
Operating case temperature TOP I=IF -10 - 70
Storage temperature TS - -40 - 85

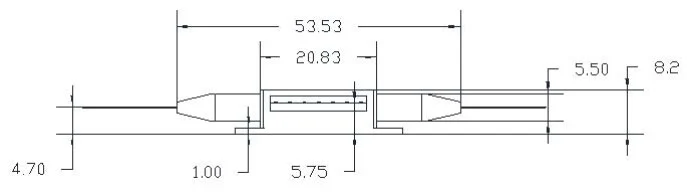

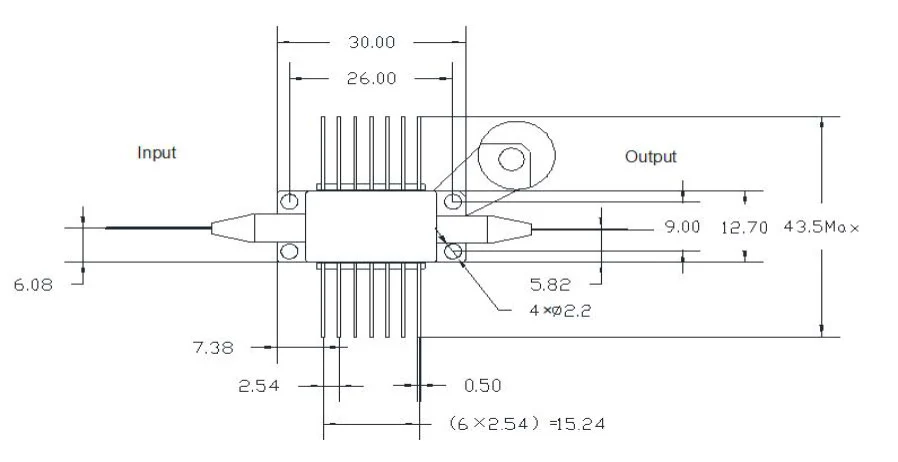

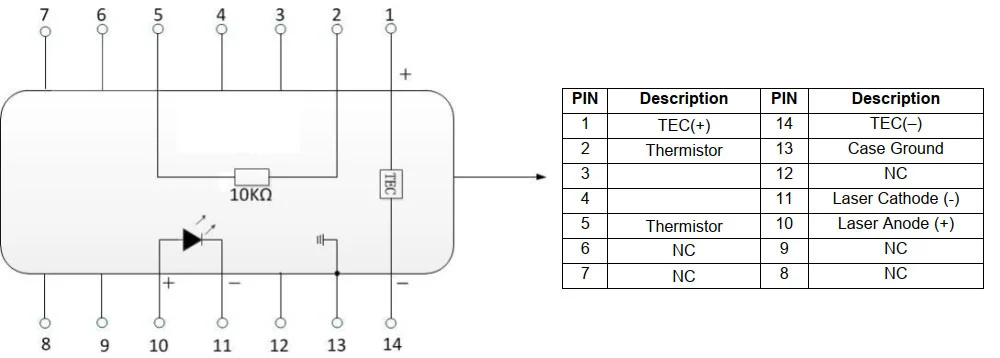

Package drawing&PIN-OUT Definition(Unit:mm)

1550nm 15dbm Soa Semiconductor Optical Amplifier Btf1550nm 15dbm Soa Semiconductor Optical Amplifier Btf1550nm 15dbm Soa Semiconductor Optical Amplifier Btf

Deliver,Shipping And Serving

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.


1550nm 15dbm Soa Semiconductor Optical Amplifier Btf

FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
