915NM 1000W со голема моќност со голема моќност Полупроводник споен со ласерски диоди за ласерско заварување
  • 915NM 1000W со голема моќност со голема моќност Полупроводник споен со ласерски диоди за ласерско заварување 915NM 1000W со голема моќност со голема моќност Полупроводник споен со ласерски диоди за ласерско заварување
  • 915NM 1000W со голема моќност со голема моќност Полупроводник споен со ласерски диоди за ласерско заварување 915NM 1000W со голема моќност со голема моќност Полупроводник споен со ласерски диоди за ласерско заварување
  • 915NM 1000W со голема моќност со голема моќност Полупроводник споен со ласерски диоди за ласерско заварување 915NM 1000W со голема моќност со голема моќност Полупроводник споен со ласерски диоди за ласерско заварување

915NM 1000W со голема моќност со голема моќност Полупроводник споен со ласерски диоди за ласерско заварување

Оптрониката на кутијата може да обезбеди ласерска диода со висока моќност од 915NM 1000W со голема моќност за ласерско заварување, обработка на материјали, извор на пумпа и други полиња.

Испрати барање

Опис на производот

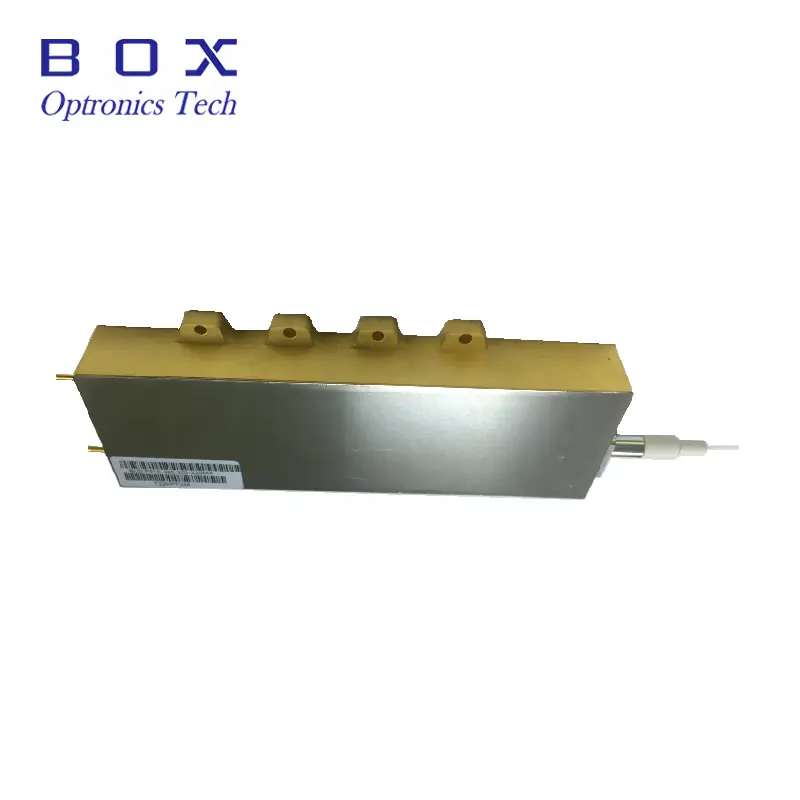

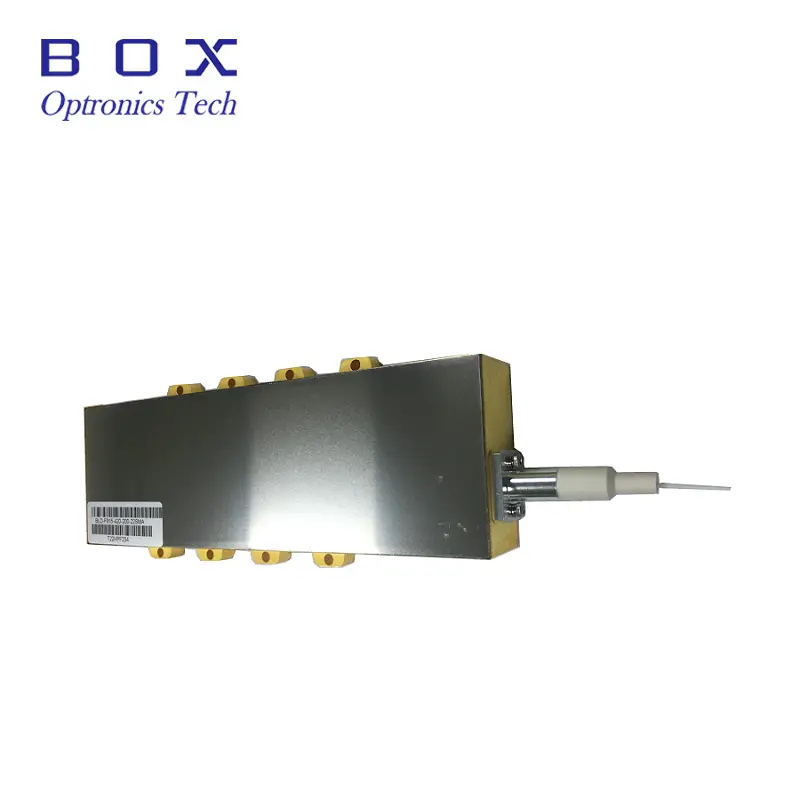

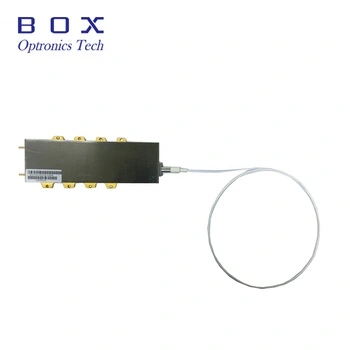

Box Optronics can provide the 915nm 1000W high power multimode semiconductor coupled laser diode for laser welding, material processing, pump source and other fields.

Features

● 915nm Single emitting laser;
● 1000W High output power;
● 400um 0.22NA Fiber;
● RoHs Compliance.

Applications

● Medical care;
● Printing;
● Material processing;
● Pump Source.

Absolute Maximum Rating:

Parameter Symbol Min. Typ. Max. Unit
Lead soldering temperature TS - - 250(5sec.)
Reverse Humidity RH 5% - 95% -
Operating temperature range TOP 15 - 55
Storage temperature range TST -30 - 70

Electro-Optical Characteristics(T=25℃)

Parameter Symbol Min. Typ. Max. Unit
Operating output power Pout 960 1000 - W
Range of available wavelength λ 905 915 925 nm
Spectral width @ FWHM Δλ - 4.5 6 nm
Threshold current Ith - 1.5 2.5 A
Operating current at Pout IOP - - 35 A
Operating voltage at Pout VOP - 59 62 V
Power conversion efficiency - - 48 - %
Wavelength temperature coefficient Δλ/ΔT - 0.3 - nm/℃
Slope efficiency η - 33 - W/A
Fiber bend radius r 37.5 - - mm
Fiber core DCOR 400 µm/µm
1064 ISO - - 30 - dB
Fiber numerical aperture NA 0.2 0.22 0.24 -
Beam numerical aperture(95% power) NA - 0.18 - NA
Fiber length Lf 1 1.5 - m
Loose tube - - 0.9 - mm
Connector type - CO -

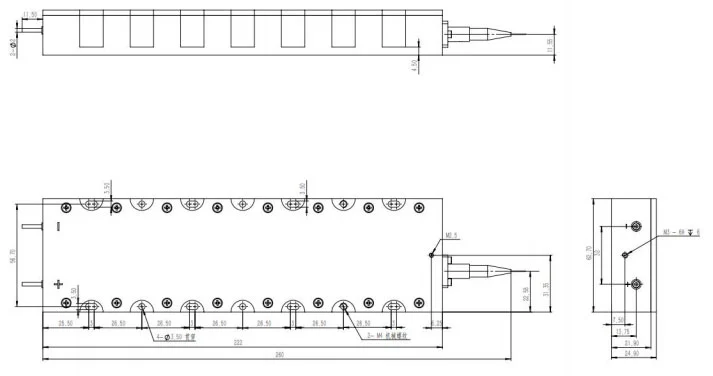

Package drawing&PIN-OUT Definition(Unit:mm):

915nm 1000w High Power Multimode Semiconductor Coupled Laser Diode For Laser Welding

Deliver,Shipping And Serving

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.


915nm 1000w High Power Multimode Semiconductor Coupled Laser Diode For Laser Welding

FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
